12V 210Ah 2688Wh Lithium Battery - LCD Display (200A BMS)

Our 12V 210Ah Lithium Battery is a drop-in replacement for lead acid batteries in a 12V system. It has a usable capacity of 2688Wh and an integrated battery management system (BMS) that protects the battery and ensures it’s long lifespan.

The battery is made of ultra safe lithium iron phosphate (LiFePO4) cells sealed in a durable plastic enclosure making it water and dust resistant (IP55). The unit can also be mounted in any position. The battery has a minimum lifespan of 2000 cycles, warrantied for 2 years, with a design life of 5 – 10 years @ 0.2C charging or discharging.

Product Features
– Ultra safe lithium iron phosphate (LifePO4) cells
– Integrated battery management system (BMS)
– Light weight versus SLA equivalent
– Water and dust resistant (IP55)
– Highly durable sealed plastic enclosure
– Drop-in lead acid replacement (small UPS, inverter, solar battery, camping battery)
– Sealed and non-liquid (No fumes, no leaking, mount in any position)

Technical Specifications
– Lithium Iron Phosphate (LifePO4) Battery Type
– 2688 Wh Usable capacity
– 210 Ah Nominal capacity @ 0.2C
– 12.8 VDC Nominal Voltage
– Operating Voltage Range : 11.6 VDC to 14.4VDC
– Operating Temp Range : Charge: 0°C to 45°C | Discharge: -20°C to 60°C
– Protection : Over-voltage | Under-voltage | Short circuit | Dust and water resistant
– Lifespan : > 3000 cycles at 100% DoD up to 6000 cycles at 80%DoD

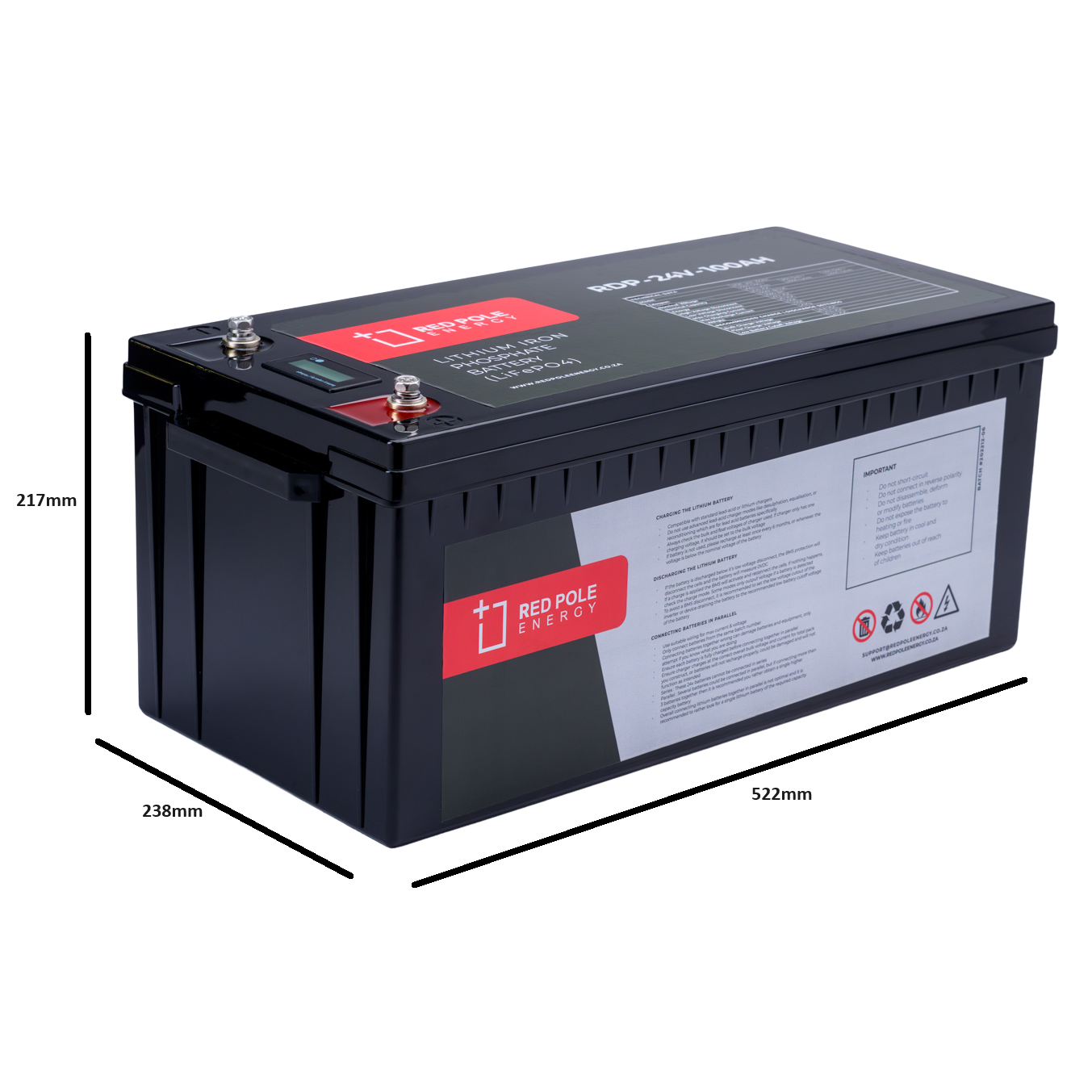

– Dimensions : 522 x 238 x 217 mm (L x W x H)
– Weight : 19.8kg

Charging / Discharging
– Bulk Charging Voltage : 14.4 VDC
– Float Charging Voltage : 13.8 VDC
– Charge Current : Max 200A
– Discharge Current : Max 200A (Burst 200A, <3s)
– Discharge Voltage Minimum : 11.6v
– Under-voltage Cut-out : 10 VDC
– Over-voltage Cut-out : 14.6 VDC
– Self-discharge rate : < 3.5% per month

What’s in the box
1 x 12v 210Ah (2688Wh) Lithium Battery
2 x 8mm Battery Lugs
