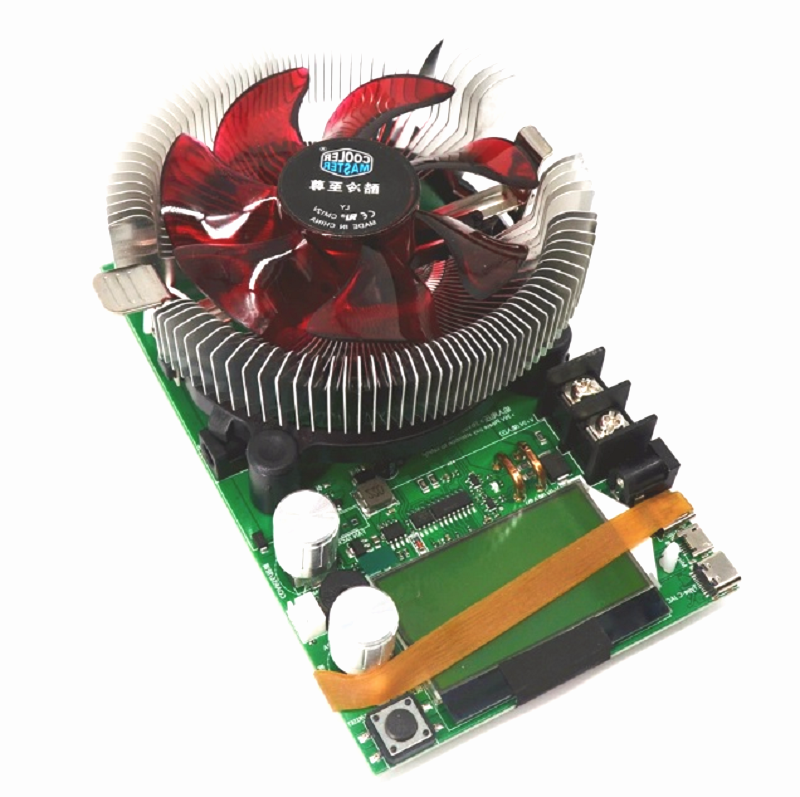

150W Digital Battery Capacity Tester

Test the Wh or Ah capacity of batteries or individual cells.

Specifications

Input interface / output interface: 100A large current occluding screw column
Voltage measurement range: 0.00V~200V
Resolution accuracy: 0.01V
Current measurement range: 0.00A~20A
Resolution accuracy: 0.01A
Capacity accumulation range: 0~999.999Ah
Resolution accuracy: 0.01Ah
Cumulative power range: 0~9999.9Wh
Resolution accuracy: 0.01Wh
Power measurement range: 0000.00~150/180 W,
Resolution accuracy: 0.01W
Impedance measurement range: 1~999.9Ohm
Resolution accuracy: 0.01Ohm
Temperature measurement range: 0~99 degrees Celsius, 0~99 degrees Celsius, Resolution accuracy: 1 degrees Celsius
Maximum time: 999 hours, 59 minutes, 59 seconds
Resolution accuracy: 1 second Timing measurement reminder settings: countdown, 24 hours arbitrary settings
Small current standby warning threshold parameters and timing: <2W/0.5 hours; >0.5W began clocking The DC voltage of the 4~30V range supplies power to the measuring system
Refresh time: >500mS/ times > 500mS/ times
Measuring speed: about 0.5 times per second
Overvoltage and overcurrent setting alarm mode: display alarm interface to remind users
Overpressure warning setting: 1~200V Low voltage reminder setting: 0~190V Overflow reminder setting: 0.2~100A Display type: micro power LCD module, LCM black font, green backlit
Product size: 156mm*96mm*58mm
Operating temperature: -10~+60 degrees Celsius, -10~+60 degrees Celsius Working humidity: 10~80 (no doubt) 10~80
Working pressure: 80~106kPa
Note: Exceeding the specified power will burn the product.

1 x 150W/180W Digital Battery Capacity Tester Voltmeter
