This set consist of 480 assorted insulated crimp connectors, all 100% brand new and high quality, grouped together in a plastic carry case.
Rings, spades, forks, and butt connectors and terminals are included.
The set contains commonly used sizes and is perfect for DIY low voltage jobs, or auto and electrical repair / modifications.
Easy to make secure and durable connections : Simply strip back the wire insulation and crimp the terminal barrel using a crimper. No soldering needed.
There are three colours indicating the wire size the connector is best suited to :
RED : 0.25 – 1.5mm2 | 22 - 16 AWG | 190pcs
BLUE : 1.5 – 2.5mm2 | 16 - 14 AWG | 190pcs
YELLOW : 4.0 – 6.0mm2 | 12 - 10 AWG | 100pcs

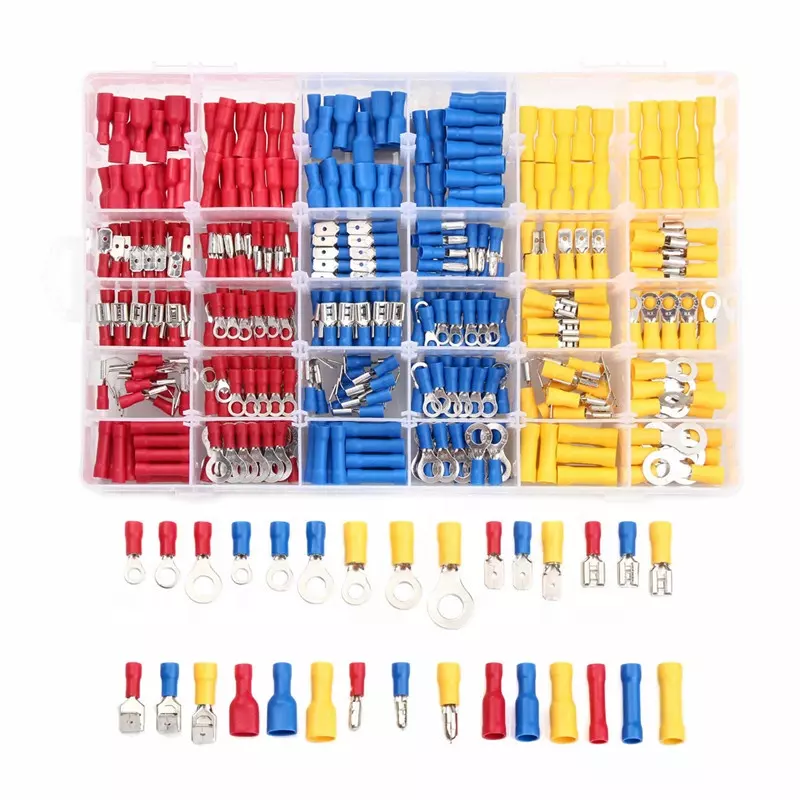

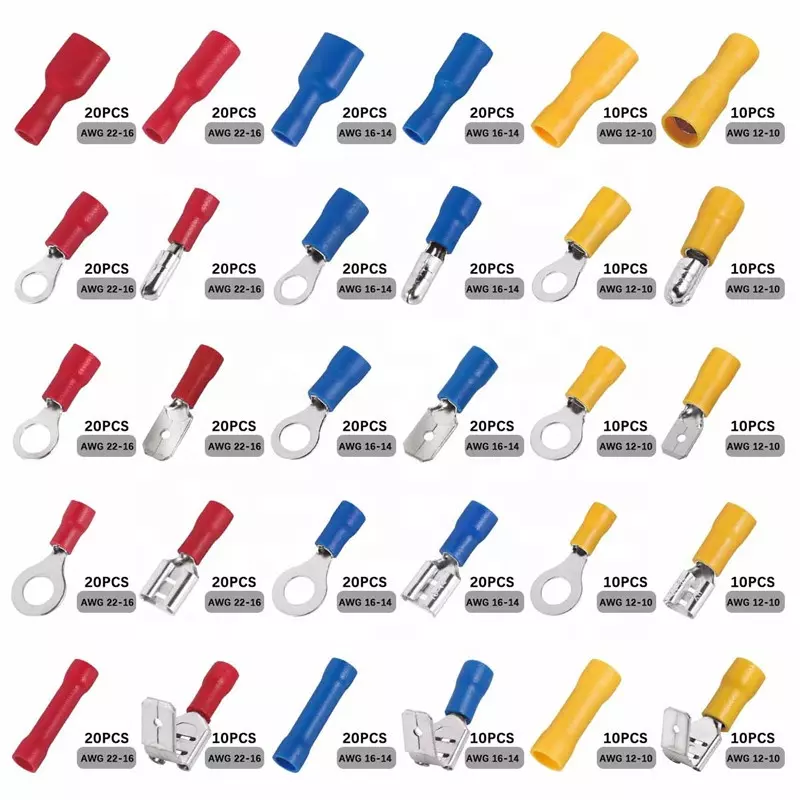

The Kit contains the following connectors (also see the image):
Ring M4 40pcs (20pcs Red , 20pcs Blue)
Ring M5 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Ring M6 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Ring M8 10pcs (10pcs Yellow)
Bullet Male 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Bullet Female 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Spade 250 Female 10pcs(10pcs Yellow)
Spade 250 Male (Semi-Insulated) 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Spade 250 Female (Semi-Insulated) 40pcs (20pcs Red + 20pcs Blue )
Spade 250 Female (Fully Insulated) 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Butt Splice 50pcs (20pcs Red + 20pcs Blue + 10pcs Yellow )
Piggy Back 250 30pcs (10pcs Red + 10pcs Blue + 10pcs Yellow )
Total : 12 Types Total : 480pcs
1 x 480pcs Assorted Crimp Connectors Inside Clear Carry Case
